Product Details:
|
Model: | Jeep Wrangler JK | Year: | 2006-2017 |
---|---|---|---|
Load: | Medium | Color: | OEM |
Material: | Steel | Part No.: | TGP2002F |
Suit: | On Road Or Off Road | Warrnty: | One Year/20,000km |
High Light: | Powder Coated Vehicle Coil Spring,3Inch Vehicle Coil Spring,Medium Load 3 inch lift coil springs |

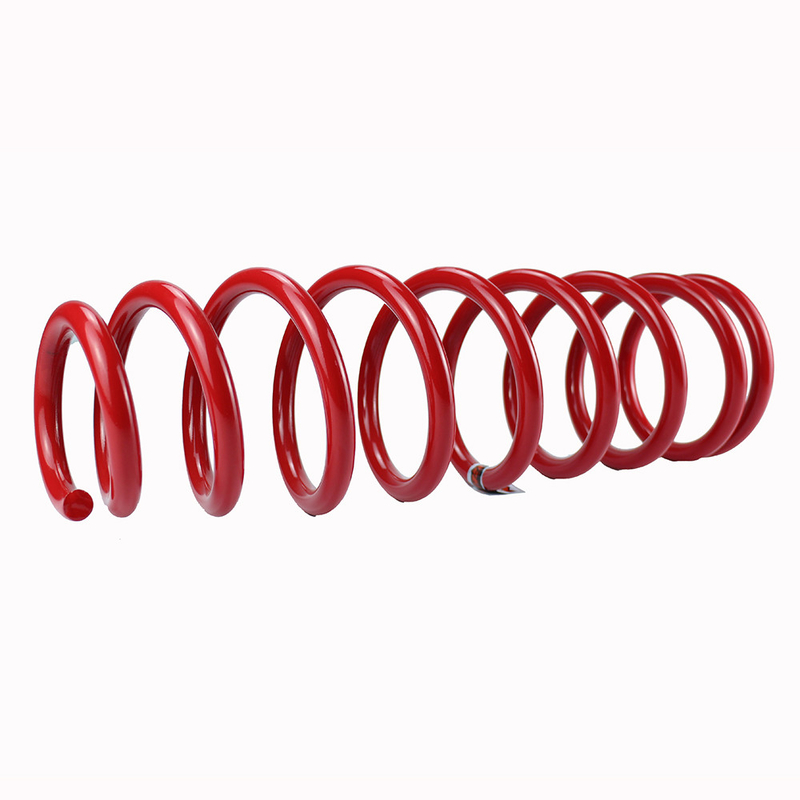

Medium Load 4x4 Off Road 2 3 Inch Lift Coil Spring For Jeep Wrangler JK Rear
Product Description
Toptiger coils spring can bedesigned with less material while maintaining superior ride quality & load carrying characteristics.
Whether it’s comfort or load carrying you need, Toptiger have a spring you can count on.They are designed around providing appropriate handling and control for the vehicle.
Support the vehicles weight and absorb the impact of the road condition, increase the life of the shock absorber and other suspension components including tyres.
Together with shock absorbers they make up the vehicles suspension system which keeps the tyres in contact with the road.
Material | 50CrV |
Surface Finish | Powder Coated |
Placement on Vehicle | Rear |
Free Length | 388mm |
Bar Dia | 16mm |
Coil weight | 4.1kg |
Color | Red/OEM |
Spring Rate | 257lbf / in |
Model | Jeep Wrangler JK |
Available in a wide range of load ratings to maintain optimum ride height
COLD COILED - CNC cold coiling ensures perfect consistency and accuracy, less heat during
manufacture maintains material properties resulting in longer life.
BAR PEELED - Bar peeling is the process of forming the material to an exact size before coiling,
this ensures the diameterremains constant and free of flaws along its entire length.
SHOT PEENED - Manipulates material surface tension to reduce stress,greatly enhances spring life.
TRIPLE SCRAGGED - Each coil is fully compressed to a solid state 3 times tominimise coil settling.
PROGRESSIVE AND LINEAR RATE - Used in accordance to original vehiclemanufacturers preference,
progressive springs increase rate as the springcompresses, linear springs maintain a consistent rate
throughout its range.
POWDERCOATED - All springs are electro-static powdercoated for a durable finish.
