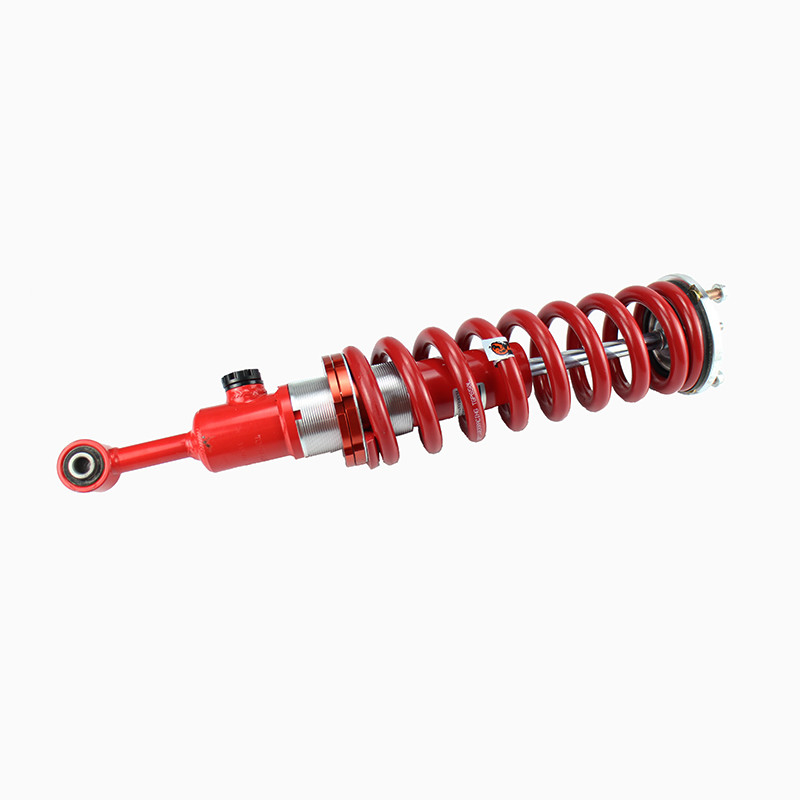

Off Road Front Suspension Strut And Coil Spring Assembly 36mm Bore

Off Road Front Suspension Strut And Coil Spring Assembly 36mm Bore
Off Road Front Suspension Strut And Coil Spring Assembly 36mm Bore

Large Image :  Off Road Front Suspension Strut And Coil Spring Assembly 36mm Bore

Product Details:
Place of Origin: China
Brand Name: Toptiger
Model Number: TKG8014
Payment & Shipping Terms:
Minimum Order Quantity: One Set/4pcs
Price: Factory price
Packaging Details: 20*20*58
Delivery Time: 10-30days
Payment Terms: Western Union, MoneyGram
Contact Now

Off Road Front Suspension Strut And Coil Spring Assembly 36mm Bore

Description
Model: Isuzu D-Max Year: 2012-2019
Structure: Gas Charged Color: OEM
Material: Steel Part No.: TKG8014
Suit: On Road Or Off Road Warrnty: One Year/20,000km
High Light:

Front Suspension Strut And Coil Spring Assembly

,

36mm Suspension Strut Assembly

,

Off Road Suspension Strut Assembly

Strut Assembly Nitrogen Gas Shock Absorbers 4x4 Adjustable Off Road For Isuzu D-Max



Application:

200612 - 2019 Isuzu D-Max

Make Model Year
Isuzu D-Max 2012
Isuzu D-Max 2013
Isuzu D-Max 2014
Isuzu D-Max 2015
Isuzu D-Max 2016
Isuzu D-Max 2017
Isuzu D-Max 2018
Isuzu D-Max 2019




Characteristic

8 stage adjustment
Allow for adjustability of compression, The result is a ride customisation that can be tailored to individual vehicle or trip requirements.
Filled with nitrogen gas
increases the temperature operating range and improves oil flow through the valving, ensuring optimum performance.

Good quality multiple lip seal
The latest technology in oil seal design – physically larger with quantum improvements in durability, oil and gas retention with much greater resistance to heat so it keeps working under the harshest conditions.

Twin-Tube internal design
Allows greater oil volume for cooling and sustained valving performance and strong 1.6mm outer tube construction protects the vital internal components from damage.


Performance shock absorber oil
High-performance oil and nitrogen gas combine to reduce aeration and make the shock more durable in harsh conditions.

Double-welded loops
For strength and reliability, all mounts have supplementary welds.

Description

Nitro Gas(ADJ.) Shock Absorbers Strut Assembly make your install so much easier and eliminate the need for a spring compressor. Let us set up the coil overs for you to proper specification.

Toptiger adjustable nitrogen gas charged shock absorbers are designed for on road and moderate off road use.

Perfect for outdoor adventures into the backcountry and back home again without breaking the bank.

Specifications:

Rod Diameter 18mm
Bore & piston 36mm
Outer Shell 57mm
Weight 14.3kg
Front Travel 22.3cm
Rear Travel 23.4cm
Box Size 20*20*58
SKU TKG8014
Warrnty One year/20,000km

Note
Before installation and use of Toptiger ATG series Nitrogen gas charged shock absorbers, please refer to the instructions attached to the product package or call manual customer service. Under the condition of correct installation and use of Toptiger’s products, the brand will give you one-year warranty for products with quality problems. If you have any warranty problems, please contact the purchase dealer or installation point.







Tag:

Shock Strut Assembly Replacement,

4x4 Shock Absorber And Strut Assembly,

4x4 Complete Shock Absorber Assembly
