Place of Origin:
China
Brand Name:
Toptigerracing
Model Number:
TGP009

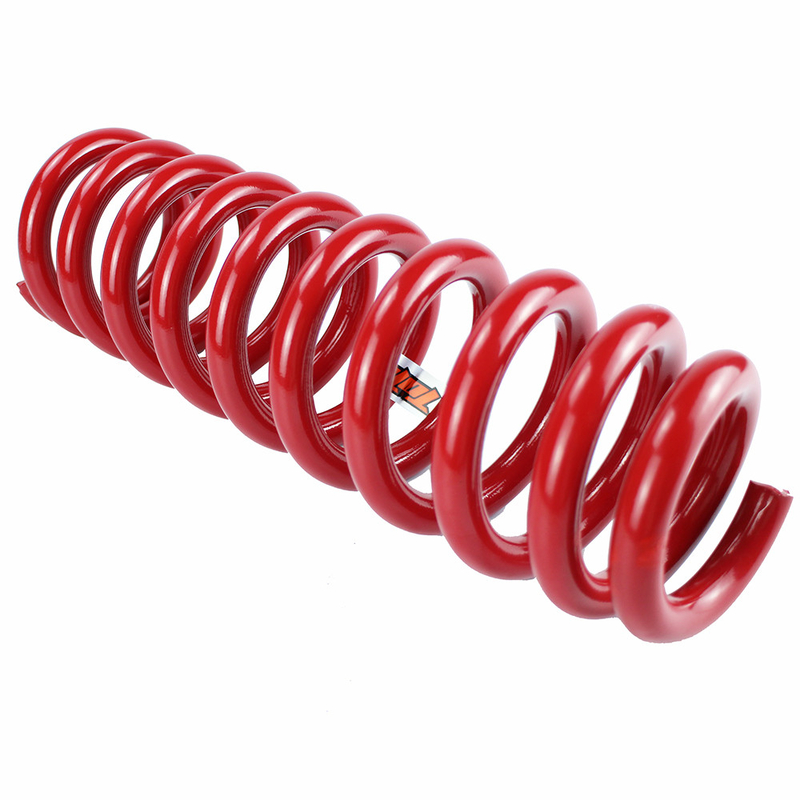

Coil Spring For TOYOTA Proda 120 Series LWB SWB 2009 on lift 2 2.5 3 inch Front
Product Description
We design a range of coil springs individually tailored to each vehicle make and model. Our coil
springs typically provide a suspension lift, depending on the model. They are designed around
providing appropriate handling and control for the vehicle. we choose to do this so that you can
have the safest and most controlled handling combined with the most comfortable ride. Some
applications have two and three different spring rates available to cater for the lightest or heaviest vehicle.
| Material | 50CrV |
| Surface Finish | Powder Coated |
| Placement on Vehicle | Front |
| Free Length | 375mm |
| Bar Dia | 16.9mm |
| Coil weight | 5.4kg |
| Color | Red |
| Spring Rate | 650 lbf / in |
| Model | Toyota Proda 150 |
Available in a wide range of load ratings to maintain optimum ride height
COLD COILED - CNC cold coiling ensures perfect consistency and accuracy, less heat during
manufacture maintains material properties resulting in longer life.
BAR PEELED - Bar peeling is the process of forming the material to an exact size before coiling,
this ensures the diameterremains constant and free of flaws along its entire length.
SHOT PEENED - Manipulates material surface tension to reduce stress,greatly enhances spring life.
TRIPLE SCRAGGED - Each coil is fully compressed to a solid state 3 times tominimise coil settling.
PROGRESSIVE AND LINEAR RATE - Used in accordance to original vehiclemanufacturers preference,
progressive springs increase rate as the springcompresses, linear springs maintain a consistent rate
throughout its range.
POWDERCOATED - All springs are electro-static powdercoated for a durable finish.
