Place of Origin:
China
Brand Name:
Toptiger
Model Number:
TGP2006R

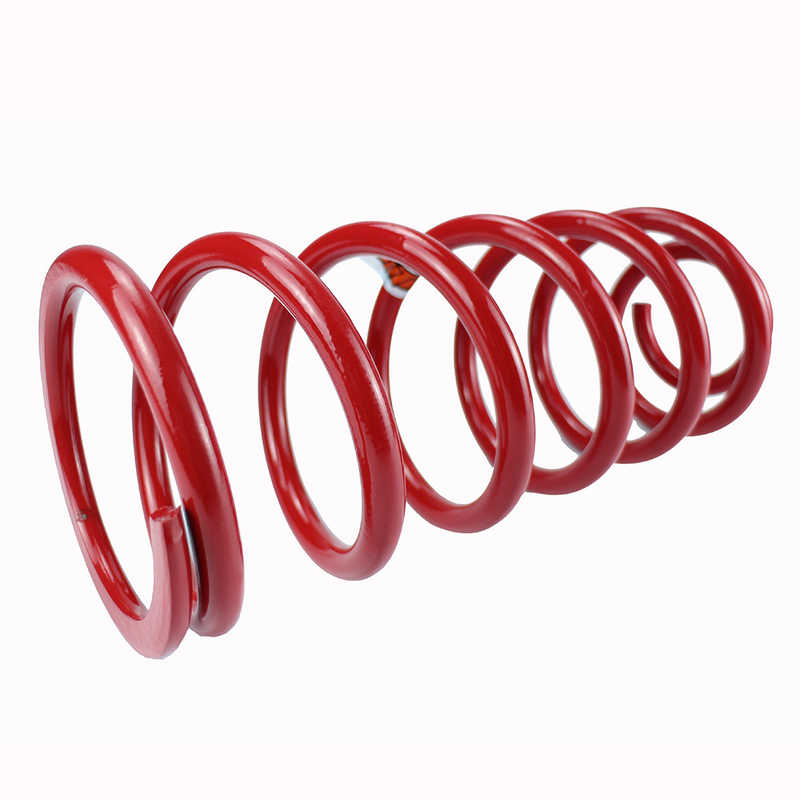

Off Road Coil Spring 4x4 40mm Light Load Lift For Grand Cherokee WH WK Rear
Product Description
Some applications have two and three different spring rates available to cater for the lightest or heaviest vehicle. We design a range of coil springs individually tailored to each vehicle make and model. Toptiger coils spring provide more lift, giving more clearance to the undercarriage of your vehicle and improving the loadcarrying capability of your 4WD.
| Material | 50CrV |
| Surface Finish | Powder Coated |
| Placement on Vehicle | Front |
| Free Length | 350mm |
| Bar Dia | 17mm |
| Color | Red/OEM |
| Spring Rate | 220 lbf / in |
| Model |
Grand Cherokee WH WK
|
| Lift | 40mm |
Available in a wide range of load ratings to maintain optimum ride height
COLD COILED - CNC cold coiling ensures perfect consistency and accuracy, less heat during
manufacture maintains material properties resulting in longer life.
BAR PEELED - Bar peeling is the process of forming the material to an exact size before coiling,
this ensures the diameterremains constant and free of flaws along its entire length.
SHOT PEENED - Manipulates material surface tension to reduce stress,greatly enhances spring life.
TRIPLE SCRAGGED - Each coil is fully compressed to a solid state 3 times tominimise coil settling.
PROGRESSIVE AND LINEAR RATE - Used in accordance to original vehiclemanufacturers preference,
progressive springs increase rate as the springcompresses, linear springs maintain a consistent rate
throughout its range.
POWDERCOATED - All springs are electro-static powdercoated for a durable finish.
