Product Details:
|
| Model: | Isuzu D-Max | Year: | 2012+ |
|---|---|---|---|
| Load: | Medium | Color: | OEM |
| Material: | Steel | Part No.: | TGP2011F |
| Suit: | On Road Or Off Road | Warrnty: | One Year/20,000km |
| High Light: | Powder Coated 4x4 Coil Springs,Automotive 4x4 Coil Springs,4x4 automotive coil springs |
||

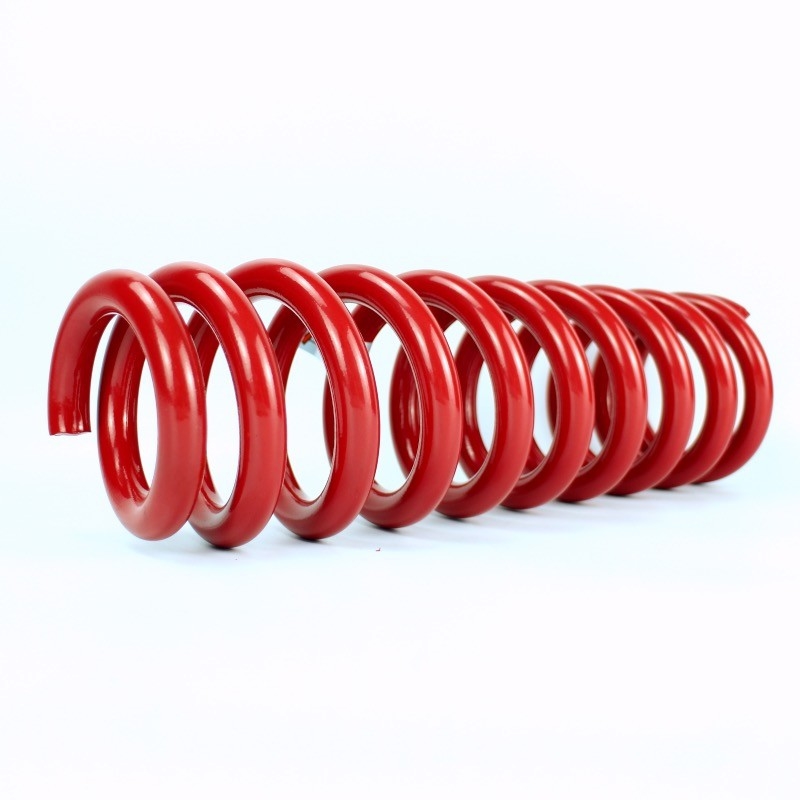

4WD Medium Load 45mm Lift 4x4 Coil Spring Off Road For Isuzu D-Max
Product Description
They are designed around providing appropriate handling and control for the vehicle. we choose to do this so that you can have the safest and most controlled handling combined with the most comfortable ride.
Some applications have two and three different spring rates available to cater for the lightest or heaviest vehicle.
| Material | 50CrV |
| Surface Finish | Powder Coated |
| Placement on Vehicle | Front |
| Free Length | 382mm |
| Bar Dia | 17.5mm |
| Color | Red/OEM |
| Spring Rate | 660lbf / in |
| Model | Isuzu D-Max |
Available in a wide range of load ratings to maintain optimum ride height
COLD COILED - CNC cold coiling ensures perfect consistency and accuracy, less heat during
manufacture maintains material properties resulting in longer life.
BAR PEELED - Bar peeling is the process of forming the material to an exact size before coiling,
this ensures the diameterremains constant and free of flaws along its entire length.
SHOT PEENED - Manipulates material surface tension to reduce stress,greatly enhances spring life.
TRIPLE SCRAGGED - Each coil is fully compressed to a solid state 3 times tominimise coil settling.
PROGRESSIVE AND LINEAR RATE - Used in accordance to original vehiclemanufacturers preference,
progressive springs increase rate as the springcompresses, linear springs maintain a consistent rate
throughout its range.
POWDERCOATED - All springs are electro-static powdercoated for a durable finish.
