Aluminum Coilover Shock Absorber 22mm Position Adjustment Remote Reservoir

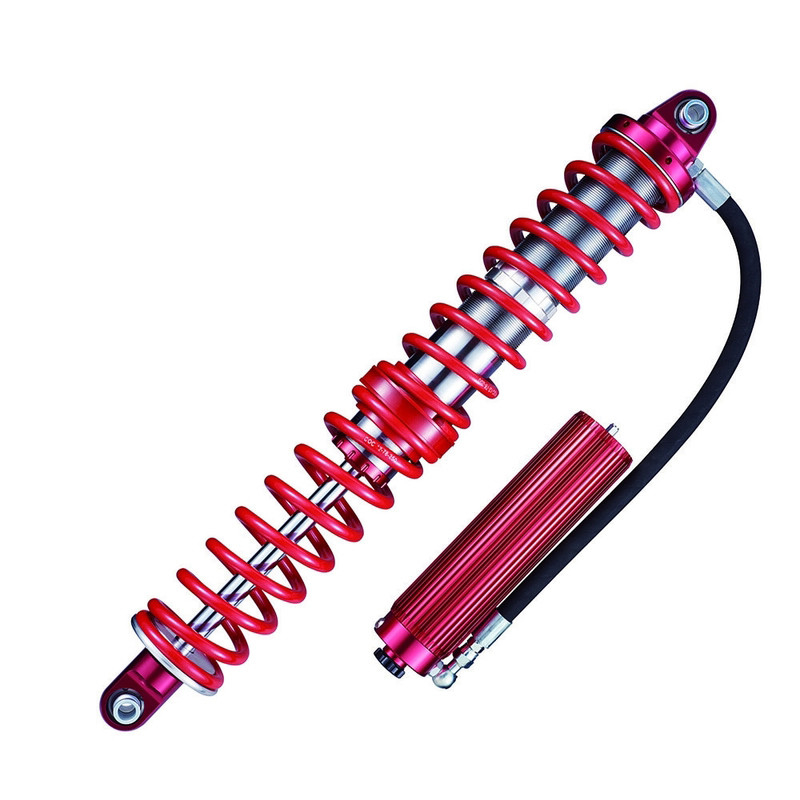

Aluminum Coilover Shock Absorber 22mm Position Adjustment Remote Reservoir

Aluminum Coilover Shock Absorber

22mm Coilover Shock Absorber

Remote Reservoir Aluminum Shock Absorber

Place of Origin:

China

Brand Name:

Toptiger

Model Number:

CO6006

Contact Us
Request A Quote
Product Details
Material:
Aluminum
Travel:
8 Inch To 16 Inch
Nitrogen Pressure:
1.0-1.2MPa
Damping Force Direction:
Two-way Direction
Position:
22mm
Cylinder Dia:
65mm
Spring:
150 Lbf / In 250 Lbf / In 350 Lbf / In
Color:
Customized Color
Applicable:
ATV, UTV, Go Kart, Off Road, SUV
Highlight:

Aluminum Coilover Shock Absorber

,

22mm Coilover Shock Absorber

,

Remote Reservoir Aluminum Shock Absorber

Payment & Shipping Terms
Minimum Order Quantity
4pcs
Price
Factory price
Packaging Details
Netural Box or Customized Box
Delivery Time
15days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Pairs Per Month
Product Description

Offroad 4X4 Coilover Shock Absorber Adjustment Remote Reservoir For JEEP JK




2006 - 2017 Jeep Wrangler JK 06-17

Make Model Year
Jeep Wrangler JK 2006
Jeep Wrangler JK 2007
Jeep Wrangler JK 2008
Jeep Wrangler JK 2009
Jeep Wrangler JK 2010
Jeep Wrangler JK 2011
Jeep Wrangler JK 2012
Jeep Wrangler JK 2013
Jeep Wrangler JK 2014
Jeep Wrangler JK 2015
Jeep Wrangler JK 2016
Jeep Wrangler JK 2017




Product Description



Toptiger 4x4 coilover shoks are the industry standard for off-road racers and rock crawlers alike. They can be valved and tuned for any vehicle from a rock crawling buggy, to a weekend wheeling jeep, to a purpose built off-roading buggy, or especially a desert racer or prerunner. The size of the 2.5 shock is enough to handle most medium to large size vehicles with easy, and selecting the right spring rate is easy with options up to 800 lbs per inch. When in doubt, go with the Toptiger 4x4 coilovers.



FAMILY FEATURES
BODY: Smooth bore and honed seamless steel
BODY PLATING: Zinc plated for a long-lasting finish
COMPONENTS: Black anodized, CNC machined 6061-T6 billet aluminum
SPRING :Application specific adjustable 3.0" racing spring
PISTON: Heavy-duty powdered steel*
6061-T6 hard anodized high flow aluminum piston**
VALVING: Application specific to maximize performance.
SEALS: Redundant sealing pack system, main seal, wiper seal, scraper seal
OIL: Fochs Suspension Fluid for improved performance at variable temperatures





Aluminum Coilover Shock Absorber 22mm Position Adjustment Remote Reservoir 0 Name off Road coilover Shock Absorber
Part number CO6005
Cylinder Dia 65mm
Shaft Dia 22mm
Eye to eye distance 740mm
Travel/Stroke 254mm
Springs /
Brand Customized
Sample Time 30~45 days
Payment method Paypal, T/T
MOQ 4 pcs
Price 300~425USD/PCS
