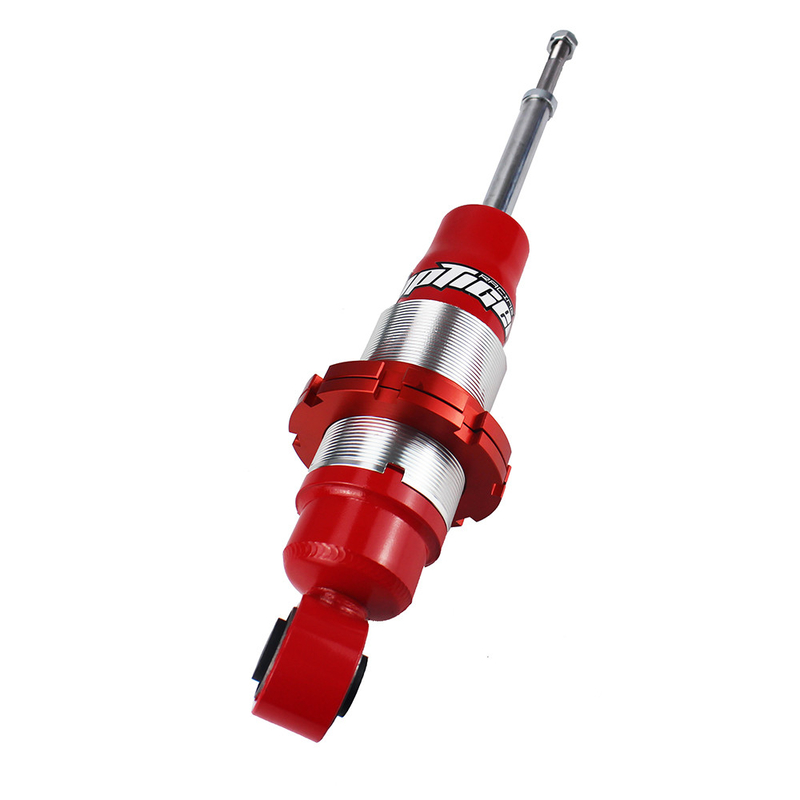

Off Road Adjustable Gas Charged Coilover Shock Absorbers 4x4 For Nissan Navara D40 NP300
Toptiger 4x4 coilover shock struts feature a threaded body for ride height adjustment. It may be neccessary to unload the spring tension before making adjustments.
Many independent suspension systems incorporating struts operate at a 2:1 motion ratio.
For every 1mm of movement (compression or extension) at the strut, equates to 2mm movement when measured at the wheel. This MUST be considered when adjusting seat height.
Raising ride height too high can damage the suspension components, impair suspension operation and safety.
Description
Toptiger ATG series Nitrogen gas charged shock absorbers designed to help your truck, van, or SUV reach its pinnacle in performance and handling, while still providing a comfortable, stable ride. Toptiger shocks will help deliver increased steering precision and superior tyre-to-road contact.
Suited to lift the vehicle and improve overall suspension performance.
Application:
2005-2014 Nissan Navara D40/NP300
Make |
Model |
Year |
Nissan |
Nissan Navara D40/NP300 |
2005 |
Nissan |
Nissan Navara D40/NP300 |
2006 |
Nissan |
Nissan Navara D40/NP300 |
2007 |
Nissan |
Nissan Navara D40/NP300 |
2008 |
Nissan |
Nissan Navara D40/NP300
|
2009 |
Nissan |
Nissan Navara D40/NP300 |
2010 |
Nissan |
Nissan Navara D40/NP300 |
2011 |
Nissan |
Nissan Navara D40/NP300 |
2012 |
Nissan |
Nissan Navara D40/NP300 |
2013 |
Nissan |
Nissan Navara D40/NP300 |
2014 |
Nissan |
Nissan Navara D40/NP300 |
2015 |
Nissan |
Nissan Navara D40/NP300 |
2016 |
Nissan |
Nissan Navara D40/NP300 |
2017 |
Nissan |
Nissan Navara D40/NP300 |
2018 |
Nissan |
Nissan Navara D40/NP300 |
2019 |
Nissan |
Nissan Navara D40/NP300 |
2020 |
Nissan |
Nissan Navara D40/NP300 |
2021 |
Nissan |
Nissan Navara D40/NP300 |
2022 |
Characteristic
8 stage adjustment
Allow for adjustability of compression, The result is a ride customisation that can be tailored to individual vehicle or trip requirements.
Twin-Tube internal design
Allows greater oil volume for cooling and sustained valving performance and strong 1.6mm outer tube construction protects the vital internal components from damage.
Filled with nitrogen gas
increases the temperature operating range and improves oil flow through the valving, ensuring optimum performance.
Good quality multiple lip seal
The latest technology in oil seal design – physically larger with quantum improvements in durability, oil and gas retention with much greater resistance to heat so it keeps working under the harshest conditions.
Performance shock absorber oil
High-performance oil and nitrogen gas combine to reduce aeration and make the shock more durable in harsh conditions.
Double-welded loops
For strength and reliability, all mounts have supplementary welds.
Specifications:
Rod Diameter |
18mm |
Bore & piston |
36mm |
Outer Shell |
57mm |
Weight |
14.2kg |
Front Travel |
13.3cm |
Rear Travel |
22.4cm |
Box Size |
20*20*58 |
SKU |
TKG9103 |
Warrnty |
One year/20,000km |
Note
Before installation and use of Toptiger NTG series Nitrogen gas charged shock absorbers, please refer to the instructions attached to the product package or call manual customer service. Under the condition of correct installation and use of Toptiger’s products, the brand will give you one-year warranty for products with quality problems. If you have any warranty problems, please contact the purchase dealer or installation point.
