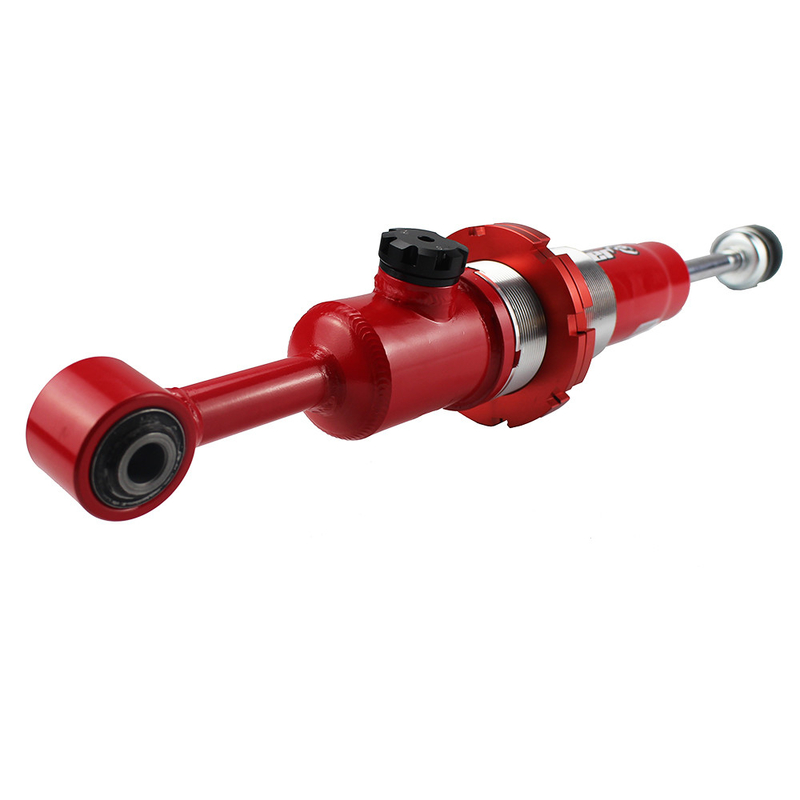

Off Road Coilover Shock Absorbers For GWM Poer Cannon Power Nitrogen Gas Charged 4x4
Toptiger 4x4 coilover shock struts feature a threaded body for ride height adjustment. It may be neccessary to unload the spring tension before making adjustments.
Many independent suspension systems incorporating struts operate at a 2:1 motion ratio.
For every 1mm of movement (compression or extension) at the strut, equates to 2mm movement when measured at the wheel. This MUST be considered when adjusting seat height.
Raising ride height too high can damage the suspension components, impair suspension operation and safety.
Description
Toptiger NTG series Nitrogen gas charged Increases the temperature operating range and improves oil flow through the valving,ensuring optimum performance. Strong enough to handle any load or harsh conditions expected from your 4x4. As the shock moves faster to absorb small bumps in the road like corrugations, the valving in the shock responds to maintain the ride control characteristics.
Suited to lift the vehicle and improve overall suspension performance.
Application:
2020+ Great Wall Poer Cannon Powe
Characteristic
Twin-Tube internal design
Allows greater oil volume for cooling and sustained valving performance and strong 1.6mm outer tube construction protects the vital internal components from damage.
Filled with nitrogen gas
increases the temperature operating range and improves oil flow through the valving, ensuring optimum performance.
Good quality multiple lip seal
The latest technology in oil seal design – physically larger with quantum improvements in durability, oil and gas retention with much greater resistance to heat so it keeps working under the harshest conditions.
Performance shock absorber oil
High-performance oil and nitrogen gas combine to reduce aeration and make the shock more durable in harsh conditions.
Double-welded loops
For strength and reliability, all mounts have supplementary welds.
Specifications:
| Rod Diameter |
18mm |
| Bore & piston |
36mm |
| Outer Shell |
57mm |
| Weight |
13.75kg |
| Front Travel |
13.7cm |
| Rear Travel |
23.6cm |
| Box Size |
20*20*58 |
| SKU |
TKG158-CO |
| Warrnty |
One year/20,000km |
Note
If you're unsure about vehicle fitment or need help selecting the right products, we're here to answer all your questions and offer advice. We love testing our products and can provide expert advice on everything from suspension setup to proper bush toilet placement.
